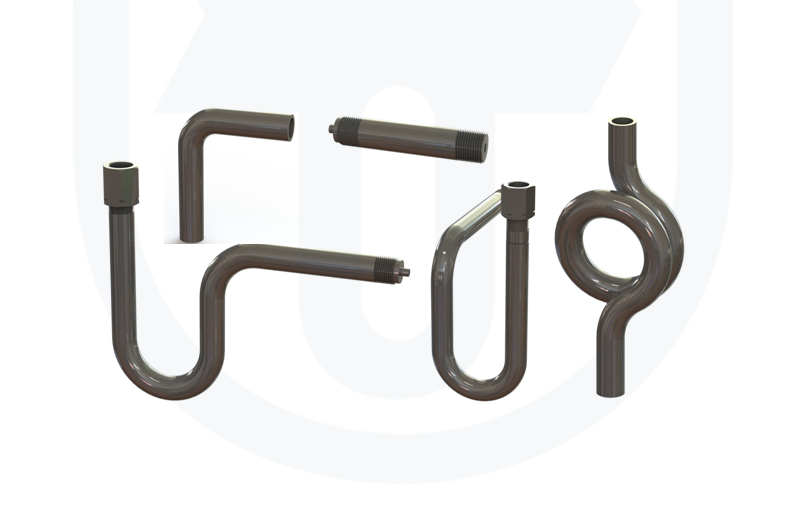

981 Accessories to pressure sensors, manifolds and valves Manometric condensations loops and adapters
- The condensation loops are used for the connection and protection of manometers against the effects of pressure surges and high temperature of the measured operating substance, which could unfavourably influence the correct function of manometers.
- The manometric adapter is used for the connection of manometers, for example instead of the closing plug of manifolds, valves or ball valve or they can also be used as a branch for other measuring equipment.
- As special design with cleanness of inner surfaces of grade I according to TPE 10-40/1926/85 (code PC1)
- For the environment, which requires mechanical resistance according to EN 60068-2-6 (class AH2 according to ČSN 33 2000-5-51) and seismic capability of the electrical equipment of the safety system of nuclear power stations according to IEC 980 (MVZ level SL-2).
Appendices to download
Click on the title of an appendix to download it
- 1) Product manual 981 (PDF 0.3 MB)
