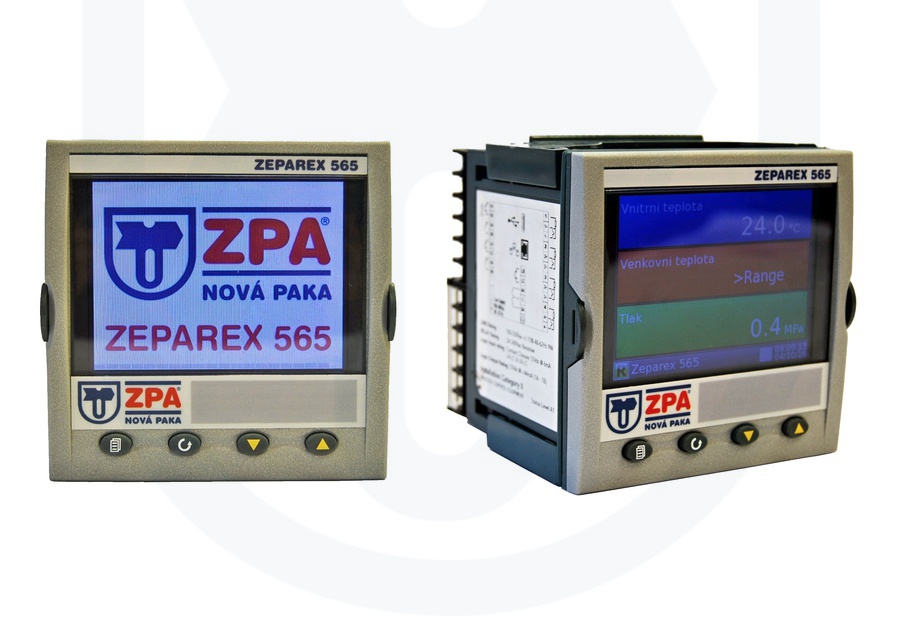

565 Digital Recorder and Controller ZEPAREX 565
Zeparex 565 is a unique combination of a digital recorder and a two-loop PID controller. The recorder contains a 3.5” screen, 4 universal channels, internal 50 Mb memory and data transfer via a USB card or Ethernet transmission and subsequent data processing in Review software. Its main advantages include the combination of recording and controlling, easy operation and data processing including high-level security.
- Easily readable ¼VGA 3.5” colour screen
- Archiving: Ethernet and USB
- 4 universal input channels
- Very fast inputs reading at 125ms intervals
- 50 Mb internal flash memory for data storage
- 30 mathematical Channels (mathematical functions)
- Review (lite), iTools software as a standard
- Settings by means of 4 buttons or iTools
- PID controller (2 loops) – extension, programmer – extension
- 3 optional outputs, 2 logical outputs, 2 relay outputs which can be used for alarms
- Output versions: LRR, LRD, LLR, RDD, DDD (L – logical, R – relay, D – insulated DC analogue output)
- Communication Modbus TCP/IP Slave (Master – extension)
- Extension to up to 8 inputs – double inputs (mV, mA, T/C)
- Functions – Zirconia, Humidity, Steriliser – extension
Appendices to download
Click on the title of an appendix to download it
- 1) ZEPAREX 565 Datasheet (PDF 0.1 MB)
- 2) ZEPAREX 565 manual (PDF 0.8 MB)
