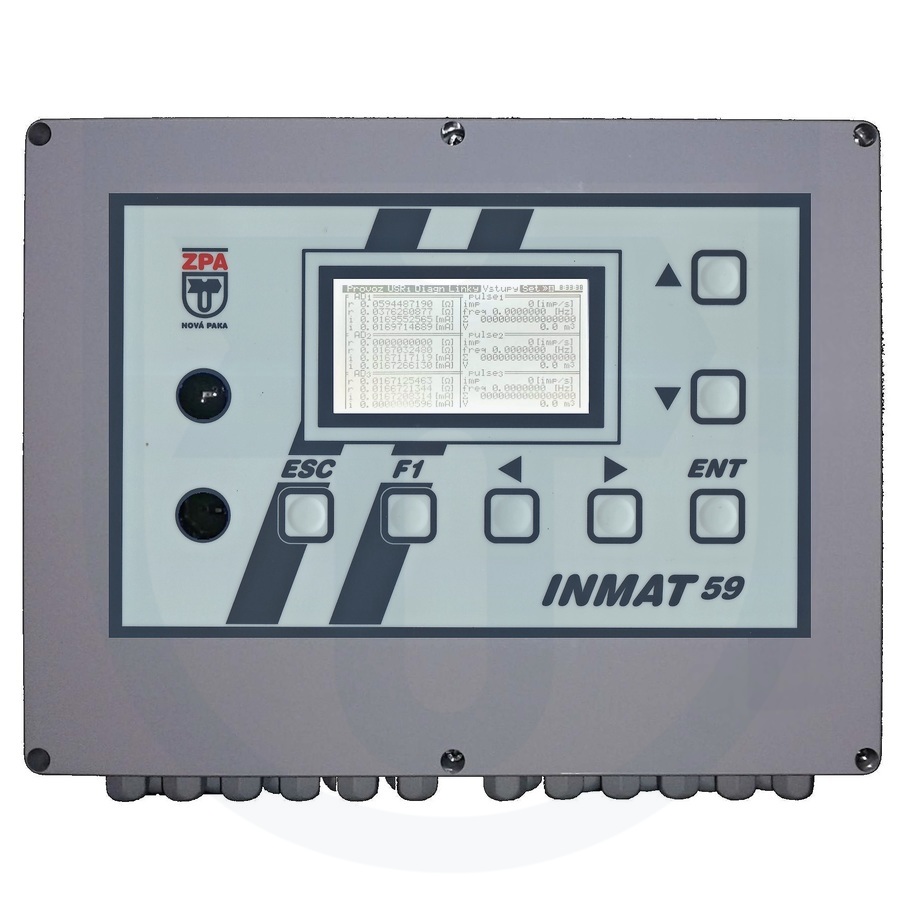

459 Heat and cold meter, evaluation unit of gas flow INMAT 59
- to measure the flow and heat transferred by steam
- to measure flow and heat in condensate
- to measure the flow and heat transferred by water
- to measure cold
- to measure the flow of liquids
- to measure gas flow
- as a separate meter for the construction of closed measuring units as well as for the construction of large-scale distributed systems
INMAT 59 allows the measurement of one to three separate circuits (taking into account the number of available inputs). It is possible to combine the measurement of different media and the use of different principles of flow measurement.
The design of the device, including the industrial protection IP 65, allows the use of the evaluation unit in the most demanding conditions. INMAT 59 is not designed for operation in the environment with a threat of explosion.
The devices Converters are rated products pursuant to the Directive 2014/30/EU of the European Parliament and the Council and EU Declaration of Conformity EU-459000 is issued for them
Appendices to download
Click on the title of an appendix to download it
- 1) Product manual 459 (PDF 0.8 MB)
