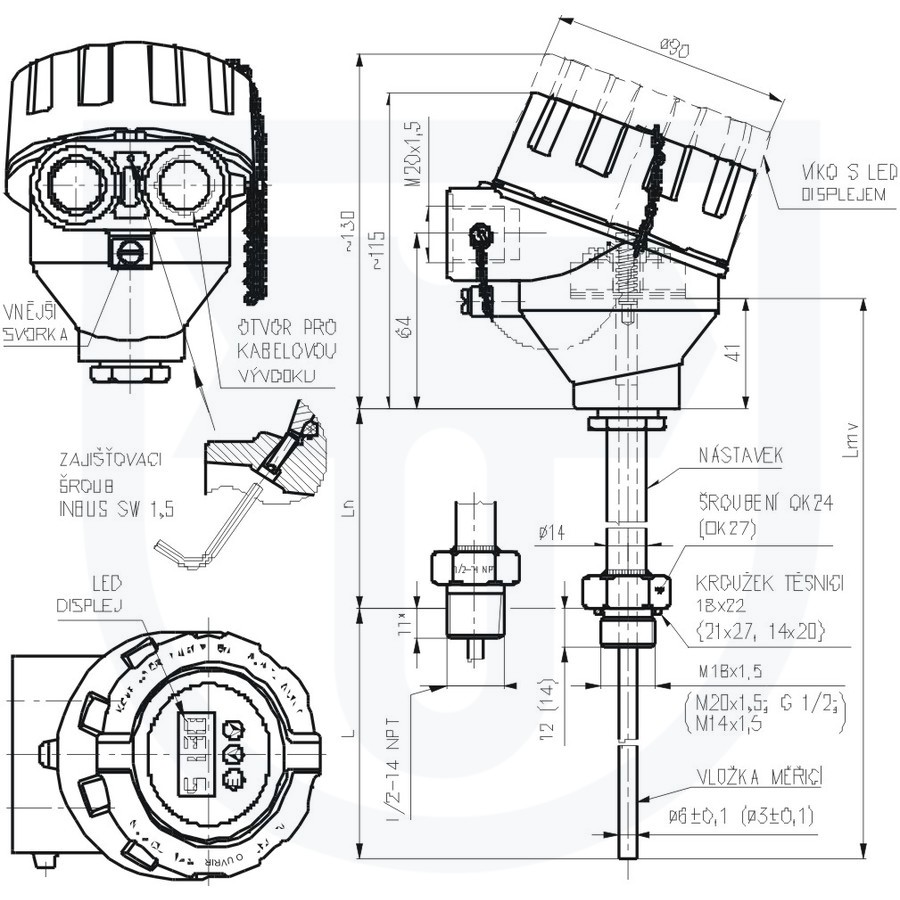

333 Thermoelectric temperature sensor Ex d (Ex t, Ex i) to thermowell DIN without converter or with converter
- For exact remote measurement of temperature of steady and running liquids (gases and fluids), for which the properties of the thermowell of the sensor selected by the customer are suitable; measurement may be realized up to pressure determined by thermowell resistance.
- For environment with explosive gaseous atmosphere according to EN 60079-10-1 and explosive atmospheres with combustible dust according to EN 60079-10-2
- The sensor may be installed in the thermowell located in zone 1(21) or zone 2(22) - In a set with control or diagnostic systems for process monitoring
- In design with converter for transfer of thermoelectric sensor signal to unified output signal 4 to 20 mA or digital signal (converter with HART protocol)
- In design with display to display the value of the measured value
- For the environment, where mechanical resistance is required pursuant to EN 60068-2-6 (class AH2) and seismic capability of the electrical equipment of the safety system of the nuclear power stations pursuant to IEC 980 (MVZ level SL-2)
- The sensors are rated products pursuant to the Directive 2014/34/EU, 2014/30/EU of the European Parliament and the Council and Declaration of Conformity EU-233000 is issued for them.
Appendices to download
Click on the title of an appendix to download it
- 1) Product manual 333 (PDF 1.3 MB)
- 2) EU declaration of conformity 333 (PDF 0.4 MB)
- 3) Supplementary EU - Type Examination Certificate No. 3 (PDF 1.3 MB)
- 4) Supplementary EU - Type Examination Certificate No. 4 (PDF 0.7 MB)
