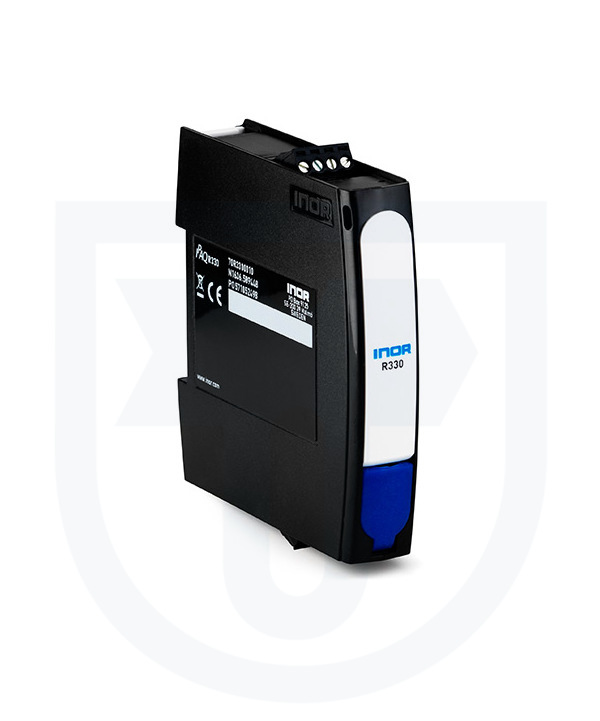

IPAQ R330/ R330X Two-wire smart to DIN rail converter isolated, programmable
- To convert a resistance or thermoelectric sensor signal to a unified output signal 4 to 20 mA or 20 to 4 mA
- For installation on 35 mm DIN rail according to EN 60715 / DIN 50022
- For explosive conditions in areas Zone 2, Zone 1 and Zone 0 pursuant to EN 60079-10 in case of using the converter R330X
DESCRIPTION
On the front side of the converter there are terminals for sensor connection and power supply / evaluation and a connector for PC connection (configuration units). The converter is powered from an external source and is equipped with polarity protection and EMC circuits. Converters is equipped with galvanic isolation, sensor error correction and the whole system, adjustable output function at sensor interruption and short-circuit, a run counter to monitor elapsed running time between calibrations.
In case of instability or interference at the input, an adjustable output filter level can be used.
The converter is set up using a PC connection via USB, using the ConSoft software or on a portable device with NFC and Bluetooth. All HW and SW required to set up the converter is included in the supplied ICON configuration set (separately supplied), no power required for programming.
