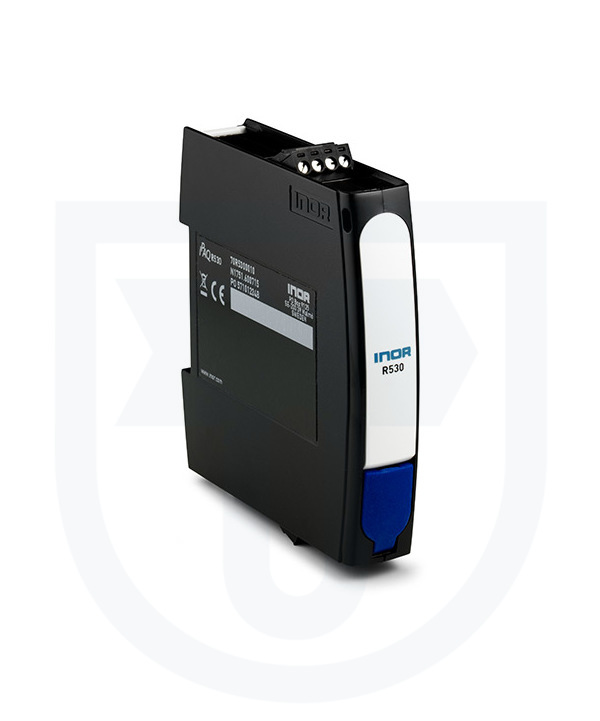

IPAQ R530/ R530X Two-wire smart to DIN rail converter isolated, programmable, with HART 7 protocol and NFC technology
- To convert a resistance or thermoelectric sensor signal to a unified output signal 4 to 20 mA or 20 to 4 mA
- For installation on 35 mm DIN rail according to EN 60715 / DIN 50022
- For explosive conditions in areas Zone 2, Zone 1 and Zone 0 pursuant to EN 60079-10 in case of using the converter R530X
DESCRIPTION
On the front side there are terminals for connection sensor or two sensors, power supply / evaluation and a connector for PC connection (configuration units). The converter is powered from an external source and is equipped with polarity protection and EMC circuits. The converter is resistant to sensor interruption and short circuit. The converter is equipped with galvanic isolation, sensor error correction and the whole system, adjustable output function at sensor interruption and short-circuits.
The converter is set up using a PC connection via USB, using the ConSoft software, via HART communicator or on a portable device with NFC and Bluetooth. All HW and SW required to set up the converter is included in the supplied ICON configuration set (separately supplied), no power required for programming.
Appendices to download
Click on the title of an appendix to download it
- 1) Product manual IPAQ R530/ R530X (PDF 0.3 MB)
